对焊支管座
对焊支管座

Weldolet-BW-对焊管座

草莓视频下载色描述
Weldolet Specification:
Size/尺寸 1/2" NPS TO 24" NPS
Class/压力等级 3000LB, 6000LB, 9000LB (STD, SCH80/XS, SCH160, XXH)
Type/连接形式 Buttweld/对焊
Surface Treatment/表面处理 Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering,Darken,
热浸镀锌，环氧树脂和FBE涂层，电抛光，喷砂，发黑
Materal/材质 Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
不锈钢，合金钢，双相钢，镍合金，低温钢，碳素钢，铜镍合金
Manufacturing process/制造工艺 Cutting, Heat treatment, Forging, Machining
锯切、热处理、模锻、机加工
Manufacturing Standards/制造标准 MSS SP-97
Weldolet Material Grades:
Stainless Steel/不锈钢 ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L
Duplex & Super Duplex Steel/双相钢  ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950.
Carbon Steel/碳钢 ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
Alloy Steel/合金钢  ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91
Copper Alloy Steel/铜合金 Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy/镍合金  ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

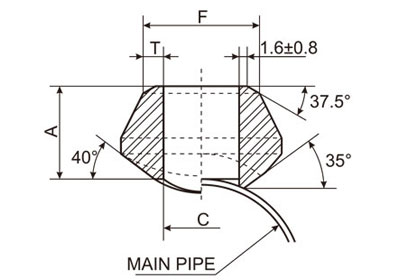

Weldolet Dimesions Table 1:
Out-Let Pipe NPS Reducing Way
A C F T
Standard Extra Strong
Weight
1/8" 16 13.7 10.3 1.73 2.41
1/4" 16 13.7 13.7 2.24 3.02
3/8" 19 17.1 17.1 2.31 3.2
1/2" 19 21.3 21.3 2.77 3.73
3/4" 22 26.7 26.7 2.87 3.91
1" 27 33.4 33.4 3.38 4.55
1-1/4" 32 42.2 42.2 3.56 4.85
1-1/2" 33 48.3 48.3 3.68 5.08
2" 38 60.3 60.3 3.91 5.54
2-1/2" 41 73 73 5.16 7.01
3" 44 88.9 88.9 5.49 7.62
3-1/2" 48 101.6 101.6 5.74 8.56
4" 51 114.3 114.3 6.02 8.56
5" 57 141.3 141.3 6.55 9.53
6" 78 168.3 168.3 7.11 10.97
8" 99 219.3 219.3 8.11 12.7
10" 94 273.1 273.1 9.27 12.7
12" 103 323.9 323.9 9.53 12.7
14" 100 355.6 355.6 9.53 12.7
16" 106 406.4 406.4 9.53 12.7
18" 111 457.2 457.2 9.53 12.7
20" 119 508 508 9.53 12.7
24" 140 609.6 609.6 9.53 12.7

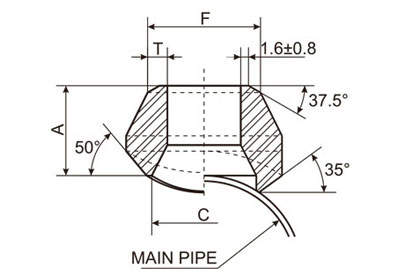

Weldolet Dimesions Table 2:
Out-Let Pipe NPS Reducing Way
A C F T
Standard Extra Strong
Weight
1/8" --- --- --- --- ---
1/4" 16 11.5 13.7 2.24 3.02
3/8" 19 14.5 17.1 2.31 3.2
1/2" 19 16.5 21.3 2.77 3.73
3/4" 22 21.5 26.7 2.87 3.91
1" 27 27.2 33.4 3.38 4.55
1-1/4" 32 36 42.2 3.56 4.85
1-1/2" 33 42 48.3 3.68 5.08
2" 38 53 60.3 3.91 5.54
2-1/2" 41 65 73 5.16 7.01
3" 44 80 88.9 5.49 7.62
3-1/2" --- --- --- --- ---
4" 51 104 114.3 6.02 8.56
(1) Dimensions in Millimeters.
(2) Weld Bevel in accordance with ASME B16.25
(3) Outside size 4 and less fit a number of run pipe sizes and the fitting are marked accordingly.
(4) Outside size 5 and up order to specific size combination.



Dimensional tolerance of MSS-SP97
Item 1/8"to3/4" 1"to4" 5"to12" 14"to24
Face of fitting to crotch(A) ±0.76 ±1.52 ±3.05 ±4.83
